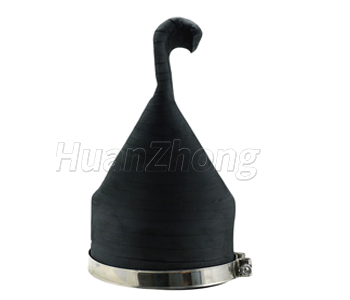

Clamp socket rubber duckbill valve is a kind of rubber structure, outline is of duckbill shape, with functions of "forward, reverse non-return" new type of water supply and drainage valve products. It is adopts different design mechanism and choose different rubber according to the stress analysis and stress calculation, different working condition, choose different rubber formula, and according to the special process and it is made by different technologies. Choose and buy curved duckbill valve, please go to Gongyi HuanZhong Pipeline Equipment Co., Ltd.
Installation size and method
Socket duckbill valve series product adopts the design of sleeve in the valve installation, set into the matching connection pipe, and uses the stainless steel clamp. Clamp used bolt between the bayonet lock. Pay attention when installing a nominal pipe diameter greater than 800 mm, because of its high body weight, combined with a lot of water when working, so must add a supporting rod.
Installation and place notes
1. V type rubber check valve, should be put in low temperature and dry place;
2. Set the floor above ground level down;
3. The valve should be far away from heat, ozone, oil, acid, strong alkali area;
4. It is forbidden to sharp intense radiation light exposure and bearing;
5. It is forbidden to sharp instruments cut surface;
6. On package labeled "write", do not allow the upside down or flat.
