What are the features and functions of the clamp type rubber expansion joints?

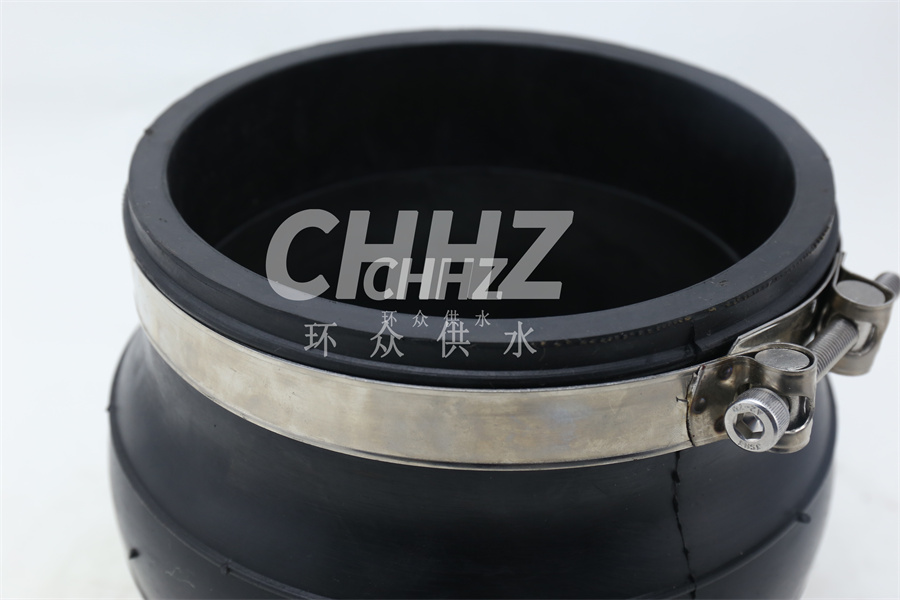

The clamp type rubber joint adopts the clamp type instead of the flange plate and the bolt. When in use, the two ends of the clamp type rubber expansion joint can be conveniently set on the pipeline to be connected, and the rubber joint is connected to the pipeline through the stainless steel clamp. Fixed connection; just loosen the clamp when disassembling. So as to achieve the purpose of compensating the displacement of the pipeline due to thermal expansion and contraction and water delivery.
save the flange and bolts, and save the cost of the project. There is no need for flanging at the mouth of the joint, which simplifies work efficiency. The clamp-type rubber joint simplifies the installation and maintenance work and improves the work efficiency. Made of stainless steel, it has the characteristics of corrosion resistance. Clamps are used to replace flanges and bolts. During installation, the two nozzles of the clamp-type rubber joint can be respectively fitted on the pipes to be connected, and the rubber joints can be fixedly connected to the pipes through the clamps. The clamp can be loosened when disassembling. So as to achieve the purpose of compensating the displacement of the pipeline due to thermal expansion and contraction and water delivery. The function of the clamp type rubber joint: the connection function is equivalent to the flange; the expansion function is equivalent to the expansion joint.
Application of clamp-type rubber expansion joints: When used in low-temperature heating systems, it must meet the technical requirements of pipeline expansion, bracket setting, rubber heat resistance and anti-aging performance. It is used for fire protection system, domestic water supply system, hot water system, air conditioning system, etc. Due to the particularity of the clamp connection, this connection form can be well used in pipeline maintenance and construction, providing convenience for maintenance operations.
Special attention should be paid to when choosing and purchasing clamp rubber joints, be sure to confirm the outer diameter of the pipe, and select the correct and appropriate clamp rubber joint according to the outer diameter of the pipe, so that the safety and sealing of the pipe can be improved.
