Product introduction of rectangular corrugated compensator
Corrugated compensator belongs to a compensation element. Using the effective expansion and contraction deformation of its working body bellows to absorb the dimensional change of pipelines, conduits, containers, etc. caused by thermal expansion and contraction, or compensate the axial, lateral and angular displacement of pipelines, conduits, containers, etc.. It can also be used for noise and vibration reduction. It is widely used in modern industry.
Moment type corrugated compensator product role
1. When the pipeline crosses the foundation beam or basement wall, in order to avoid the settlement of the foundation to the pressure of the pipeline, it is necessary to install the moment type compensator.
2. In the case of long heat pipeline, it is necessary to install the moment type compensator to reduce the 'heat rise and cold shrinkage' on the pipeline stretch.
Moment type compensator is mainly used to compensate axial displacement, can also compensate transverse displacement or axial and transverse synthetic displacement, has the ability to compensate angular displacement, but generally not apply it to compensate angular displacement.

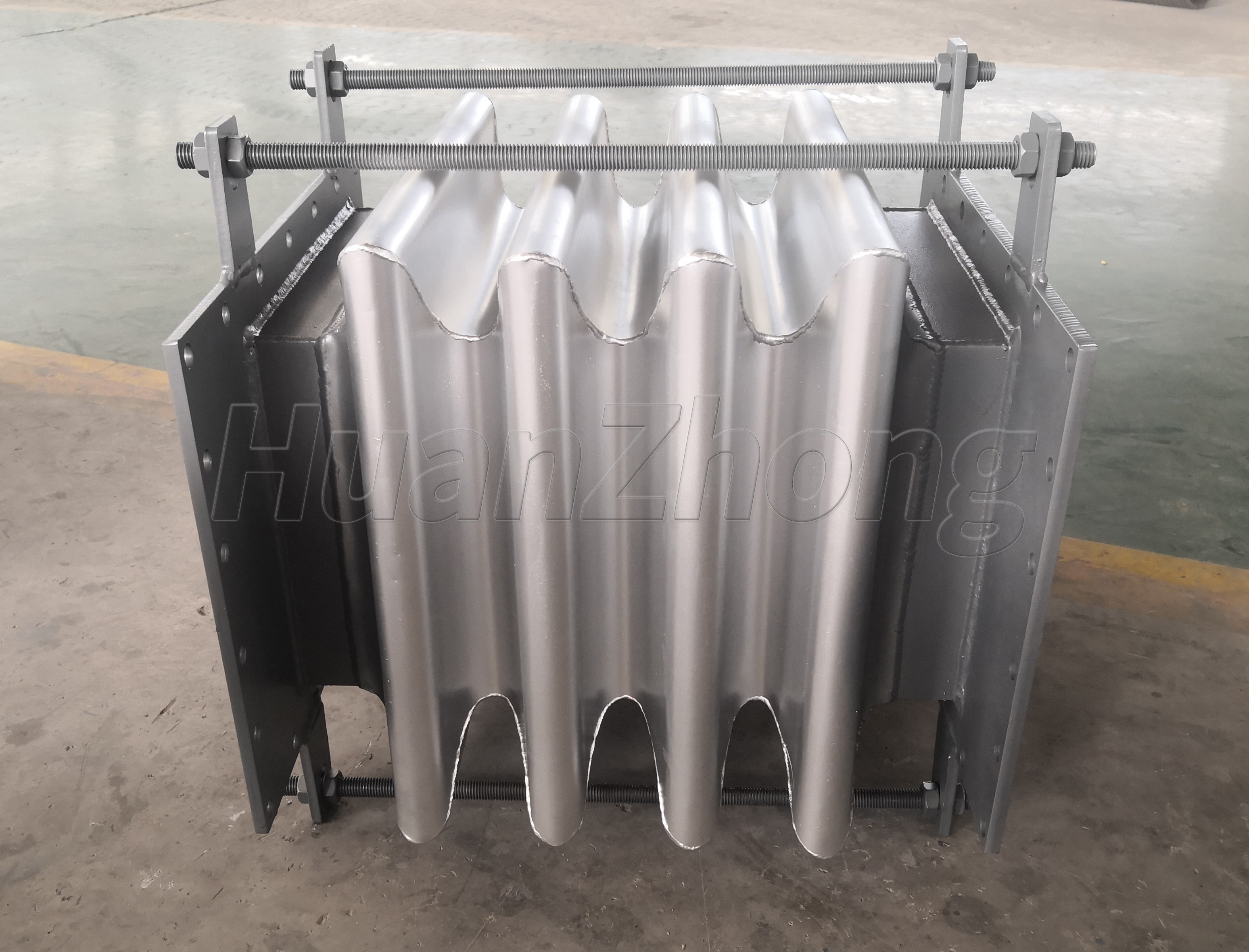

Moment type compensator consists of a bellows and two end receiver, the end receiver or directly welded with the pipe, or welded on the flange and then connected with the pipe flange.
The tie rod of the moment type compensator is mainly a rigid support during transportation or as a product to deformation adjustment, it is not a load-bearing member. The structure of this type of corrugated expansion joint is simple, so it is preferred.
Application scope: import and export of various pumps, valves and air compressors; various fire piping, air conditioning piping, steam piping, etc.; general factory piping and the need for sanitation; mechanical equipment piping, the need for vibration damping and compensation of thermal displacement; domestic water piping and the need for flexible coupling.
Moment type compensator are arranged next to the fixed bracket, and then immediately after two guide bracket, the distance is 4Dg, 14Dg, the main purpose to prevent its axial instability, steam direct buried pipeline by insulation material and jacket steel pipe for support or guide, hot water direct buried pipe mainly by and insulation material to form a whole by the soil, sand layer control. This arrangement idea is good, but in actual use by the terrain restrictions, overhead pipe system support too much, it is difficult to arrange.
