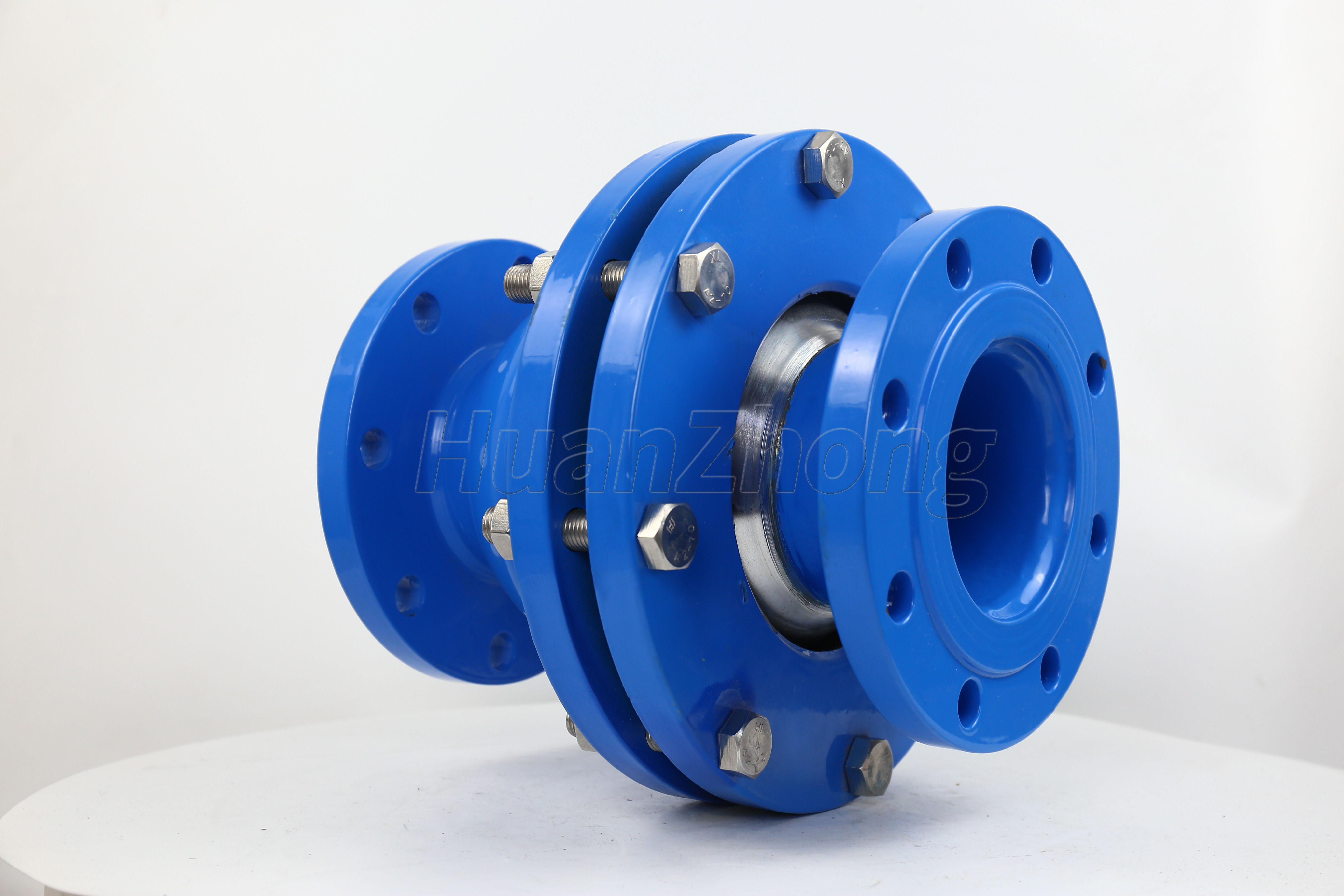

Installation conditions of the spherical compensator.
Installation conditions of the spherical compensator.
1. The spherical compensator should be checked before installation for its type, specification and pipeline configuration to meet the design requirements. 2. It is strictly forbidden to use the method of deformation of the corrugated compensator to adjust the installation of the pipeline overrun, so as not to affect the normal function of the spherical compensator, reduce the service life and increase the load of the pipe system, equipment and supporting members. 3. In the installation process, do not allow the welding slag splash to the surface of the wave shell, do not allow the wave shell by other mechanical damage. 4. After the installation of the pipe system, should be removed as soon as possible on the spherical compensator used for installation and transportation of yellow auxiliary positioning components and fasteners, and according to the design requirements of the limit device to the specified position, so that the pipe system in the environmental conditions have full compensation capacity. 5. All active components of the spherical compensator shall not be jammed by external components or limit its range of activities, and shall ensure the normal action of each active part. 6. Hydraulic test, should be equipped with compensator pipe end of the second fixed pipe frame for reinforcement, so that the pipeline does not move or rotate. For gas medium compensator and its connecting pipeline, we should pay attention to the need for additional temporary support when filling water. Water pressure test cleaning solution of the chloride ion content of not more than 25PPM, after the end of the water pressure test, should be as soon as possible to drain the wave shell in the water, and quickly blow dry the inner surface of the wave shell.
