Best Installation Technology of Buckle Grooved Flexible Rubber Joint-Product knowledge

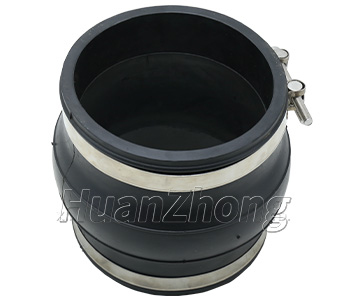

Buckle grooved flexible rubber joint generally is composed of inner layer 、fabric reinforced protection layer(layer increase with multilayer fractioning polyamide cord fabric)、middle layer、outer layer and end reinforced metal ring or steel wire circle, through high temperature and high pressure vulcanization molding, with metal flange or a combination of parallel loose tube compounding rubber hose. This product taking advantage of the high elasticity, medium resistance and weather resistance and radiation resistance of rubber can reduce the vibration and noise of pipeline, and can meet the compensation caused by changes in temperature effect on heat bilges cold shrink.

Before installing, we need to put the pipe to be connected in the horizontal plane flat. When installing, put the fixed end of pipe flat, then rotate the flange of flexible rubber joint to make the flange hole alignment, put on the screws and screw the nut, and then make the other flange of the pipe on the horizontal alignment with the flange of flexible rubber joint, rotate flange of flexible rubber joint to make the flange mouths relatively near, put on the screws and nuts, keeping them on horizontal direction closed connection, to prevent the untight seal.( when installing, the flange of flexible rubber joint can be turned 360 degrees).
