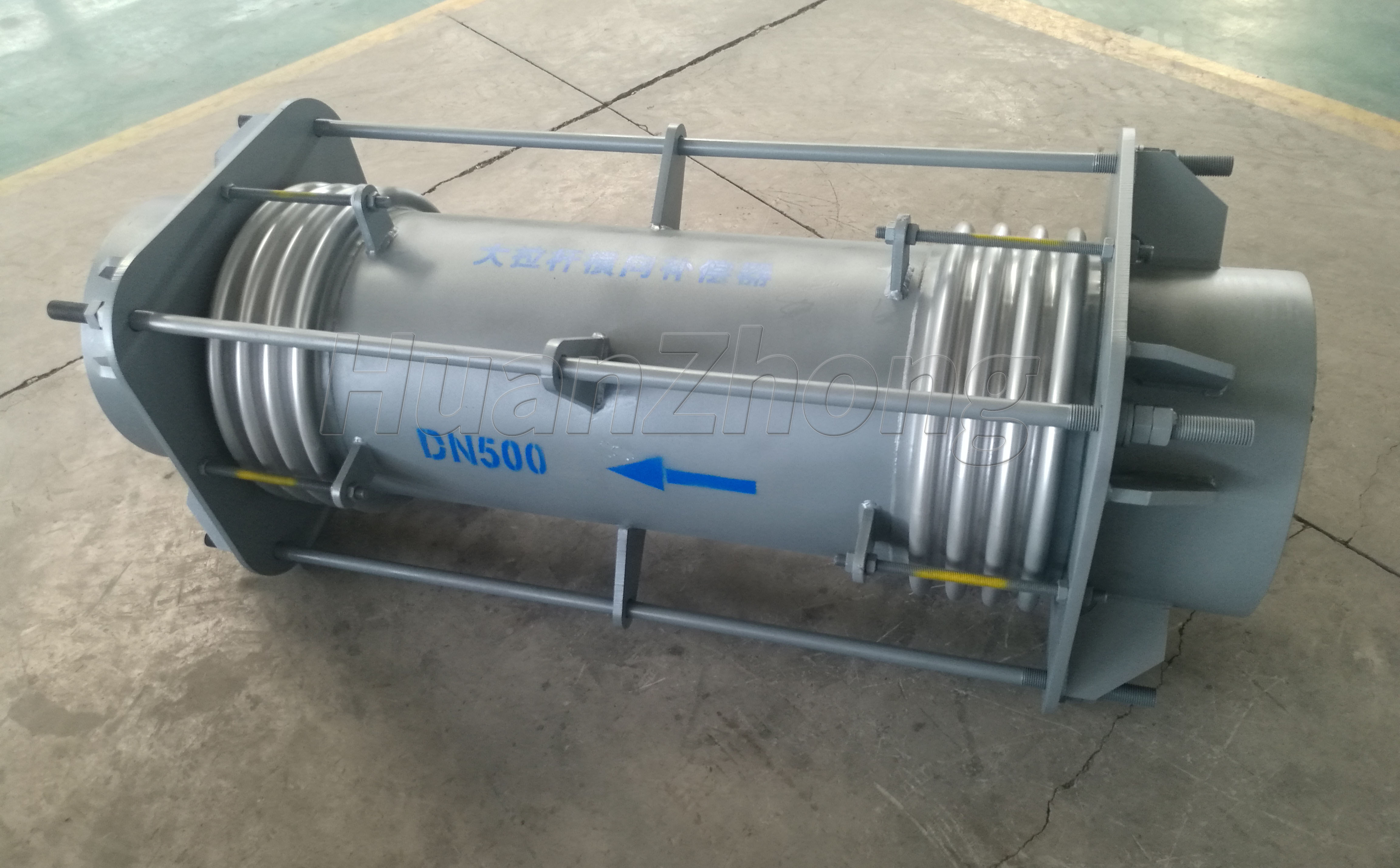

Product structure big tie rod compensator is composed of two corrugated hoses, two end tubes, an intermediate tube and several big tie rods, the big tie rod in the transverse big tie rod corrugated compensator plays an important role in balancing the internal pressure thrust of the transverse pipe section and absorbing the transverse displacement of the pipe section so that the compensator deformation, big tie rod transverse corrugated compensator deformation of the working state. When the longitudinal pipe section of the internal pressure thrust to make the longitudinal pipe section elongation and make both sides of the straight pipe section to the longitudinal displacement, the big tie rod to withstand the internal pressure thrust to play a fixed role to avoid the compensator corrugated hose elongation pull broken. Large tie rod corrugated compensator product advantages:
Large tie rod compensator through the angular deflection of the bellows can absorb the lateral displacement of the pipe, has the advantage of large compensation capacity, no internal pressure thrust on the longitudinal pipe section, can not balance the internal pressure thrust of the longitudinal pipe section. Large tie rod compensator can be used on L and Z type pipe section. This type of corrugated compensator can absorb the transverse displacement of each direction through the angular deflection, and the compensation volume is large, no pressure thrust effect on the support, simple structure, in a variety of large displacement L and Z-type pipe section is widely used. In this big tie transverse type corrugated compensator as an example, to explain its application occasions. The middle pipe and bellows of the pipe compensator only bear the internal pressure circumferential stress, but not the internal pressure axial force, i.e., the internal pressure axial force σθ is zero, which improves the force state of the compensator. When the horizontal pipe section is displaced by temperature change or by internal pressure thrust, the rectangular structure composed of large tie rods can make parallelogram deformation, when the corrugated hoses at both ends of the compensator occur opposite side elongation side compression deformation, so that the horizontal pipe section in the lateral free displacement, absorbing the stress.
