Stainless steel metal hose has several connection situations

Stainless steel metal hose has several connection situations

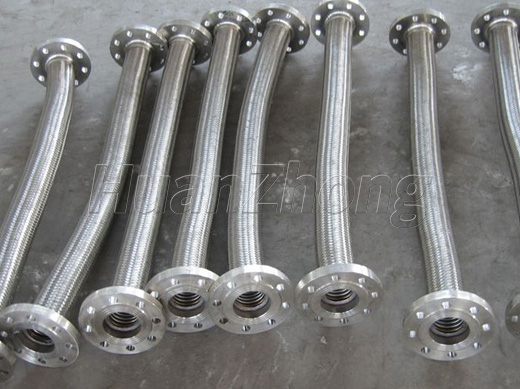

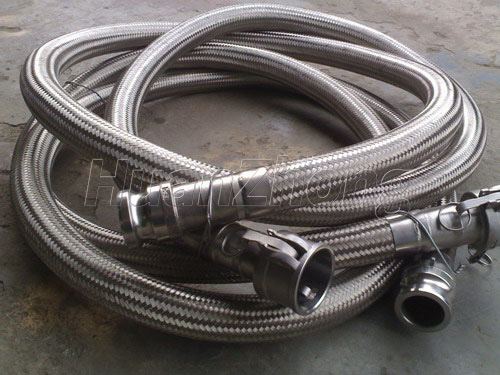

Stainless steel hose joints are mainly used for flexible connection of pipes. Our stainless steel hose mainly has external stainless steel wire mesh and internal corrugated hose. When running, the external stainless steel wire mesh mainly bears the pressure of the pipeline. The internal stainless steel corrugated hose is mainly to connect the pipeline and ensure the sealing performance of the pipeline. The external stainless steel wire mesh is mainly made of fine wire mesh or stainless steel ribbon mesh. General fine wire mesh according to the form of stainless steel wire mesh made of diameter can be used 0.8mm wire mesh, stainless steel wire mesh with a width of about 1cm band made. Generally large diameter pipeline using stainless steel wire mesh made of stainless steel belt, small diameter pipeline more fine stainless steel wire mesh. According to the material used, for 201 or stainless steel 304, 316L. general stainless steel hose is a combination of 201 outer wire mesh and 304 inner corrugated, cost-effective. Stainless steel hose is divided into flange stainless steel hose and flange stainless steel hose and threaded stainless steel hose according to the form of connection. Stainless steel metal hose flange connection is suitable for large-diameter low-pressure pipeline connection, live sleeve method flange stainless steel hose is suitable for long-distance stainless steel metal hose connection. The ring flange stainless steel hose is characterized by the ability to adjust the length of the pipe. The flange can be rotated in the pipeline. The tightness of the pipe connection and the arbitrary adjustment of the length of the pipe installation is the most important feature of the looping flange connection. Threaded stainless steel hoses are mainly high-pressure small-diameter pipes, which are generally used in the oil circuit of some machine tools or cooling oil pipes of large machinery. They have good pressure resistance and corrosion resistance. Made of stainless steel or copper, the threaded buckle connection is tight and leak-free.
