Large Tie Rod Transverse Corrugated Compensator Application and Installation

Large Tie Rod Transverse Corrugated Compensator Application and Installation

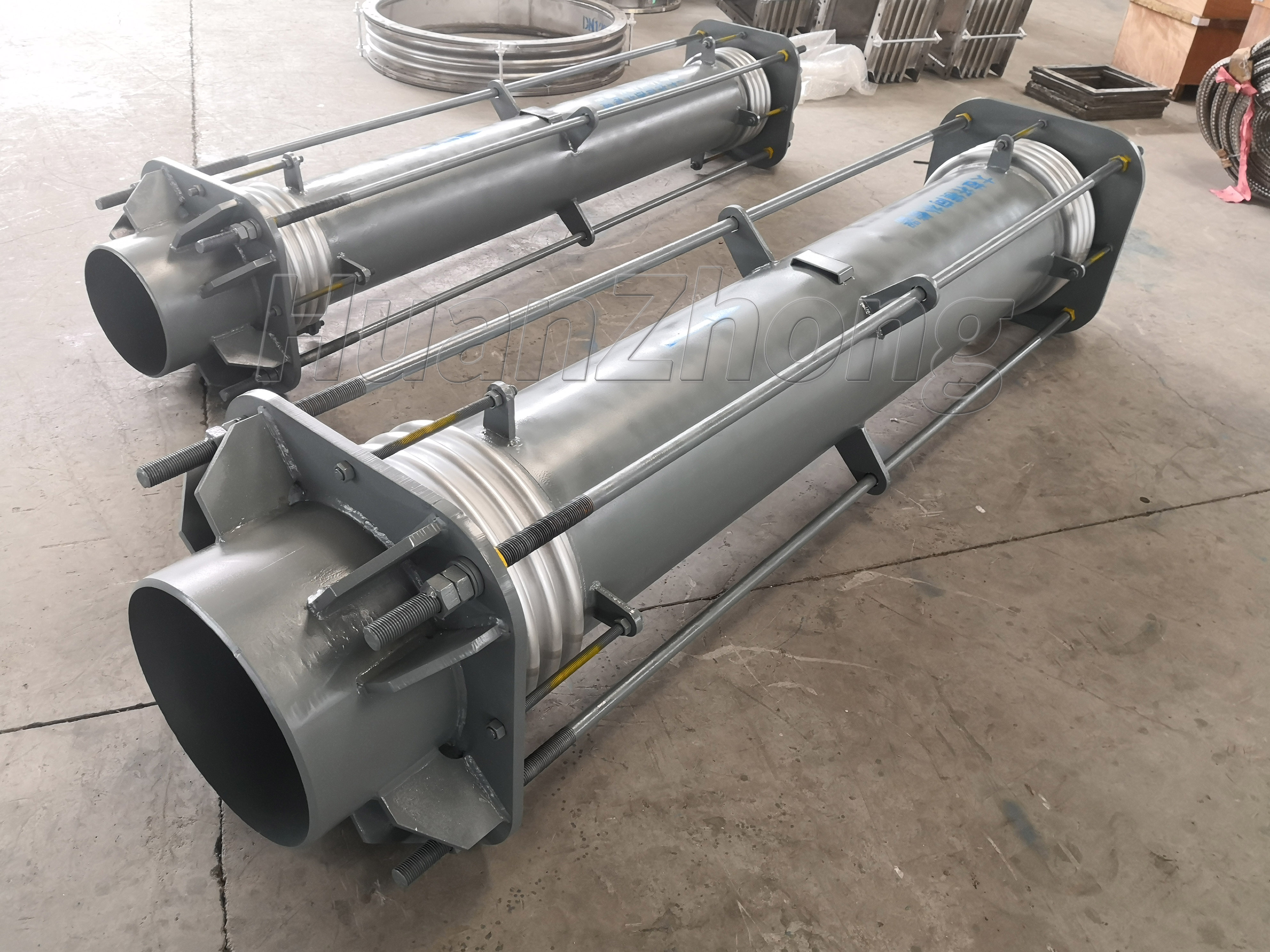

Big tie rod transverse corrugated compensator is also called big tie rod transverse corrugated expansion joint, big tie rod transverse corrugated expansion joint. This product consists of connecting tube, two bellows and big tie rod, etc. It can compensate the lateral displacement and small angular displacement of the bend section, and is usually not used to compensate the angular displacement. Large tie rod transverse corrugated compensator can absorb the lateral displacement in any plane of the pipeline system, the displacement spherical nut rotates around the spherical washer, and the tie rod also has the ability to withstand the internal pressure thrust. Large tie rod transverse corrugated compensator is widely used in power plants. Large tie rod transverse corrugated compensator is a flexible part composed of two intermediate tubes connected by the same geometric parameters and the same number of waves, tie rod and end plate. It is mainly used to compensate the transverse displacement of single plane or multi-plane bend pipe section. Suitable for "L" and "Z" type pipeline system. Before installing the product, check the integrity of the product, whether there are obvious scratches or sharp indentation; compensator (slot) should not have foreign objects; connection port should be intact, such as flange connection sealing surface should be free of penetration scars, coating without peeling, cracking, peeling, large tie rod, transport tie rod and fasteners should be complete. Then the installation work can be carried out. With the inner sleeve of the compensator in the installation, should pay attention to the direction of the inner sleeve and the direction of media flow, hinged compensator hinge rotation plane should be consistent with the displacement rotation plane; need to "cold tight" compensator, the pipeline should be removed after installation for pre-deformation of auxiliary components; forbid the use of corrugated compensator deformation method to adjust the pipeline The installation tolerance of the corrugated compensator to avoid affecting the normal function of the compensator, reduce the service life and increase the load members of the pipeline system and equipment, support.
