Metal Expansion Joints
compensator

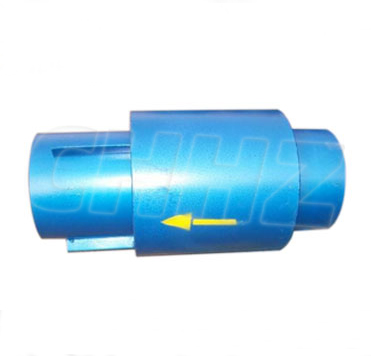

JZM Buried corrugated compensator

  • [Name]: JZM Buried corrugated compensator
  • [PN]: 0.6-2.5Mpa
  • [Medium]: Air, water, seawater, oil, slurry, weak acid, alkali, etc.
  • [Material]: SS304, 304, Q235 etc.
  • [Certification]: ISO9001:2008
  • [Specification]: JZM model
Send Email Inquiry Now

Overview

 Buried corrugated compensator mainly used in buried pipe axial compensation, has super anti-bending ability, so buried compensator shell can freely expansion compensation under the protection of sleeve.

Application: Pipes with axial displacement by temperature or pressure changes

Heating and air conditioning installation

Hot water and fire protection system

Compressors inlet and outlet

Diesel engine sets/Pipelines/Turbines/Blowers/Vacuum pumps/Heat exchangers

Features

 Installation notes:

1.Set fixed bracket to prevent pipe stretching outside influenced by inside pressure.  　　

2.One end of compensator should close to fixed bracket, use the moving head to compensate pipeline.　　

3.According to the compensation amount to set the distance between two fixed brackets, compensation amount is no more than pipe diameter.　　4.Compensator should not appear the tensile phenomenon during pressure test.

4.The compensator&Metal expansion joints absorb movement in piping caused by theraml changes.

5.Durability and excellent chemical resistance.

6.Widely used to absorb termal expansion in pipe systems carring water, steam, oil and gases

Specification



DN Waves
n		 Pressure rating (Mpa) Bellow effective areas
 (cm2)		 Maximum outer diameter size
 (mm)		 Connection tube gate size
mm
Length（mm）
0.25  0.6  1.0  1.6  2.5
Axial compensation (mm) Stiffness /(mm)

50
 		 8  14/153  12/318  12/318  12/635  11/1310  37
120

Φ57×3.5
 		 361
16  27/76  24/158  24/158  24/318  13/655  445
32  52/38  48/79  48/79  48/159  46/328  621

65
 		 8  19/213  18/213  18/213  18/424  15/841  55
159

Φ73×4
 		 377
12  30/142  29/142  27/142  27/283  25/421  425
24  60/71  58/107  54/107  54/142  50/211  581

80
 		 8  30/179  30/179  30/358  29/358  27/650    81
162

Φ89×4
 		 430
10  54/143  37/143  37/286  37/286  32/325  466
20  108/72  74/72  74/143  74/143  64/163  660

100
 		 6  34/138  34/277  33/417  33/417  32/817  121  180
Φ108×4
 		 410
10  56/83  56/166  56/250  54/417  50/409  492
20  112/42  112/83  112/125  108/125  100/205  712

125
 		 5  37/136  36/272  36/408  35/408  33/801  180
221

 Φ133×4
 		 410
9  66/76  65/151  65/227  63/227  60/401  412
18  132/38  130/76  130/114  126/114  120/201  711

150
 		 5  49/100  49/200  48/300  45/456  44/845  257
245

Φ159×4.5
 		 433
8  88/63  78/125  77/188  71/286  65/423  518
16  159/32  156/63  154/94  142/143  130/211  756

200
 		 4  58/95  56/193  56/288  56/480  55/800  479
327

Φ219×6
 		 475
6  86/63  85/128  85/192  84/320  80/927  553
12  172/32  170/64  170/96  168/160  160/200    800

250 		 4  75/170  74/343  63/588  53/930  50/1856  769   404   Φ273×8  500
6  112/113  110/228  95/392  80/620  78/927  620
12  120/57  220/114  190/196  160/310  156/464  984
