Overview

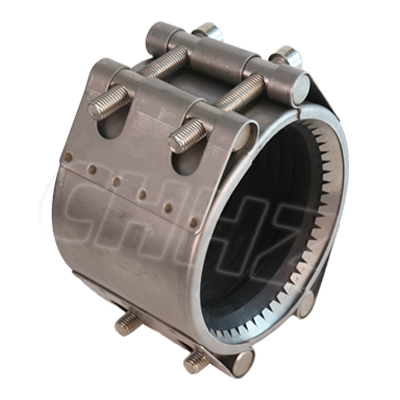

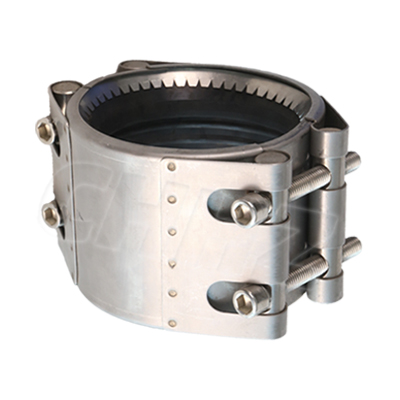

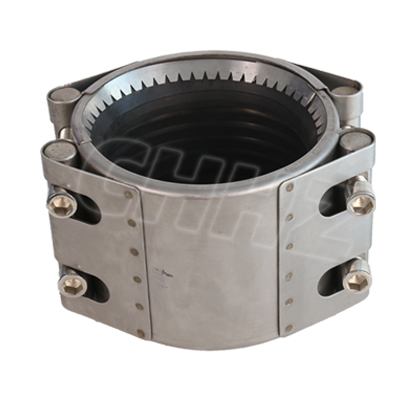

Leaking water pipes can cause serious problems. The damaged pipes must be repaired as soon and safe as possible, but also durably to prevent waterloss.  pipes has avariety of repair clamps to fix a variety of pipes. From snap clamps to joint leak clamps and more, our repair clamps are made to repair holes or breaks in water mains.
Can be used as a repair or for connecting of steel, ductile iron, PVC, HDPE and FRP pipes. Suitable for water, sewer, gas, and hydrocarbons.

Features

Manufactured from grade 316 stainless steel for superior corrosion protection
Clamps available in different lengths and diameters
Clamp is completely pickled and passivated to restore corrosion resistance
Extremely lightweight, therefore easy to handle
No sharp corners or edges
Suitable for under pressure and pressureless repairs

Specification

Model	Diameter (mm)	Pipe OD (mm)	Length		Tube pitch		Pressure (M)	Preload (Nm)
			Ordinary type	Lengthening type	Ordinary type	Lengthening type
25	34	33-35	60	100	5	5	2.5	50-80
32	42	42-44	60	100	5	10	2.5	50-100
40	48.6	47-49	60	100	5	10	2.5	50-100
50	60	59-62	80	140	8	15	2.0	100-150
65	76	75-78	80	140	10	25	2.0	100-150
80	89	88-92	100	205	10	25	2.0	150-200
100	114	108-116	100	205	10	25	1.6	150-200
125	140	137-142	110	205	10	30	1.6	250-300
150	159	157-162	110	205	10	30	1.6	250-300
200	219	217-221	140	255	10	30	1.2	400-800
250	273	271-275	140	255	10	30	1.2	400-800
300	325	323-327	140	255	10	30	1.0	400-800
350	377	375-379	155	255	10	30	1.0	800-1200
400	426	424-428	155	255	10	30	0.8	800-1200
450	480	475-482	155	255	10	30	0.8	800-1200
500	530	526-533	155	255	10	30	0.8	1200-1500
