Overview

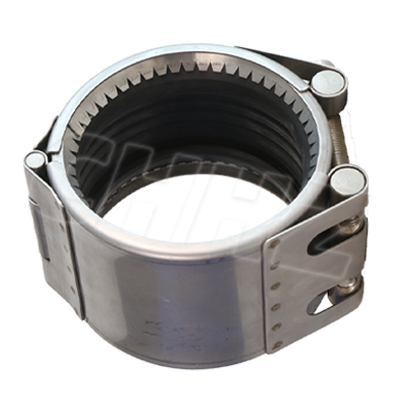

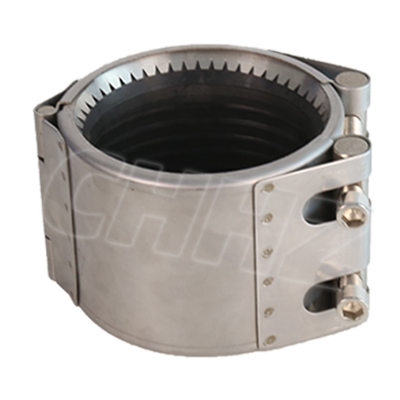

The use of high quality Stainless Steel and Nitrile Rubber gaskets permits use of the product in a range of applications from reticulated water and sewerage to industrial use. A Repair Clamp’s variable OD Range enables a single clamp to adapt to any pipe OD within that variable range. This dramatically reduces the stocking requirement to cater for each individual pipe type and size.

Features

Manufactured from grade 316 stainless steel for superior corrosion protection
The direct transmission of pressures onto the gasket generates the seal’s tightness, making use of the internal pressure. The gasket is not fixed onto the casing, therefore the clamp allows independent pipe movements.
Clamps available in different lengths and diameters
Suitable for under pressure and pressureless repairs
No sharp corners or edges
No loose parts that can get lost during assembly
Extremely lightweight, therefore easy to handle

Specification

Model	Diameter (mm)	Pipe OD (mm)	Length		Tube pitch		Pressure (M)	Preload (Nm)
			Ordinary type	Lengthening type	Ordinary type	Lengthening type
25	34	33-35	60	100	5	5	2.5	50-80
32	42	42-44	60	100	5	10	2.5	50-100
40	48.6	47-49	60	100	5	10	2.5	50-100
50	60	59-62	80	140	8	15	2.0	100-150
65	76	75-78	80	140	10	25	2.0	100-150
80	89	88-92	100	205	10	25	2.0	150-200
100	114	108-116	100	205	10	25	1.6	150-200
125	140	137-142	110	205	10	30	1.6	250-300
150	159	157-162	110	205	10	30	1.6	250-300
200	219	217-221	140	255	10	30	1.2	400-800
250	273	271-275	140	255	10	30	1.2	400-800
300	325	323-327	140	255	10	30	1.0	400-800
350	377	375-379	155	255	10	30	1.0	800-1200
400	426	424-428	155	255	10	30	0.8	800-1200
450	480	475-482	155	255	10	30	0.8	800-1200
500	530	526-533	155	255	10	30	0.8	1200-1500
